Heavy-duty indoor lifting solutions with twin parallel bridge girders, designed for maximum capacity and precision in demanding industrial environments.

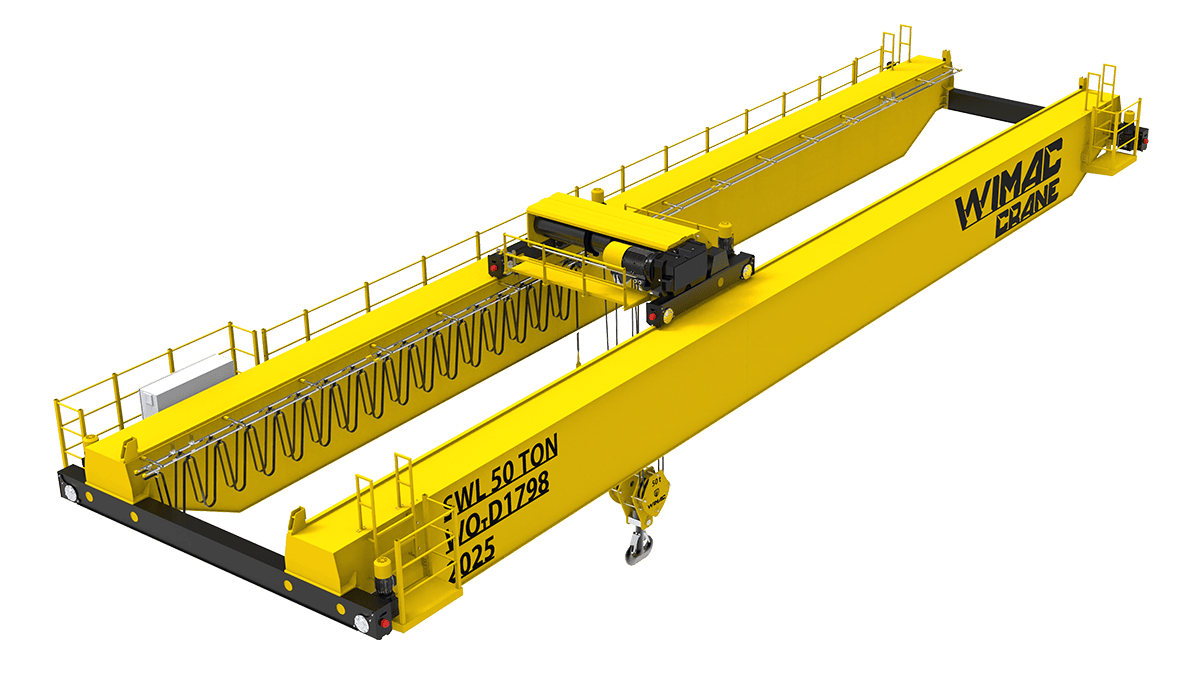

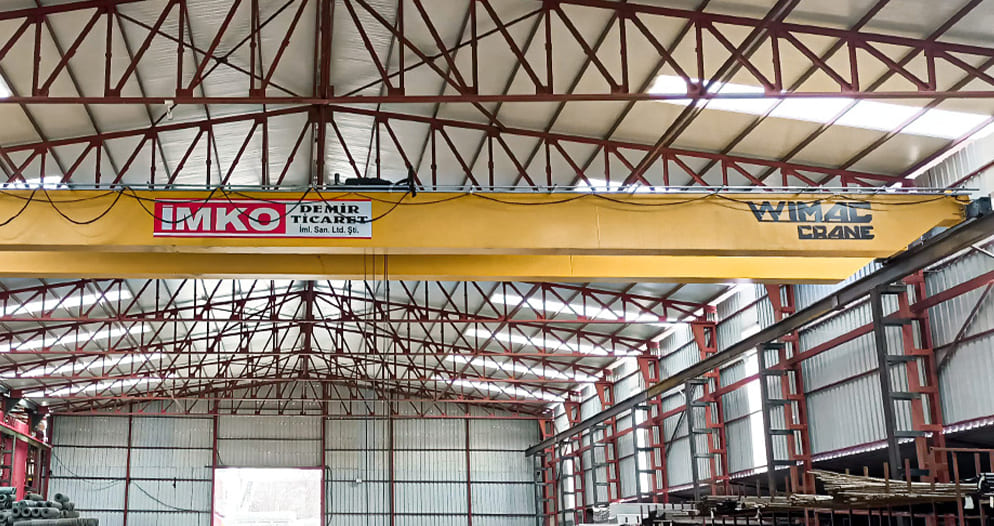

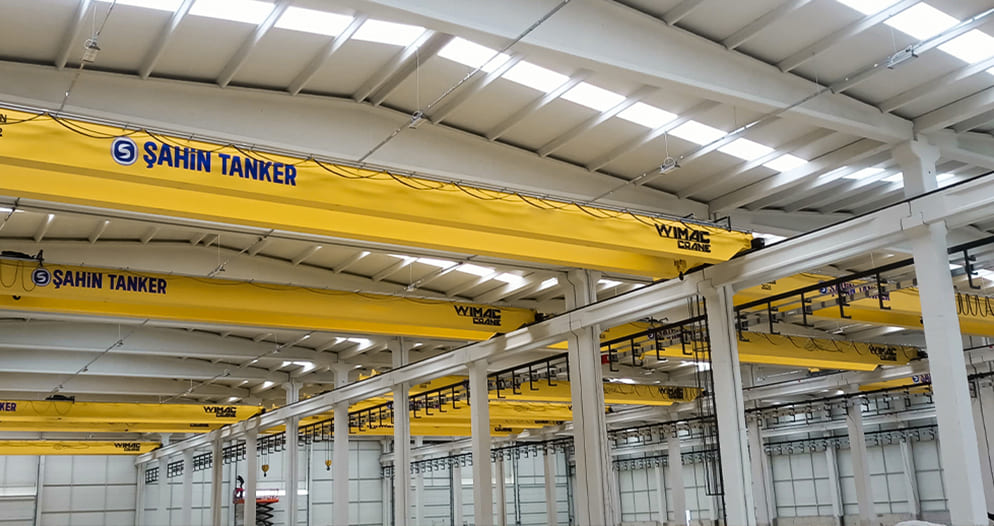

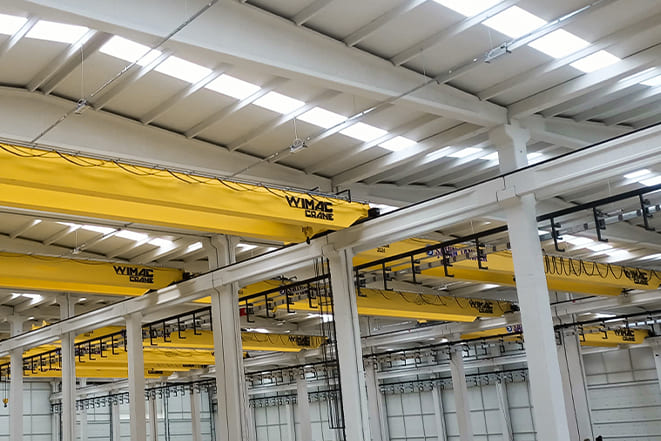

Double Girder Overhead Cranes are designed with two parallel bridge girders, allowing the hoist trolley to travel on rails mounted on top of the girders. This structural configuration enables higher lifting capacities, longer crane spans, and increased lifting heights compared to single girder systems.
Thanks to their rigid steel construction and enhanced stability, double girder overhead cranes provide precise load positioning, smooth operation, and an excellent hook approach. These characteristics make them ideal for heavy-duty material handling and continuous industrial operations.

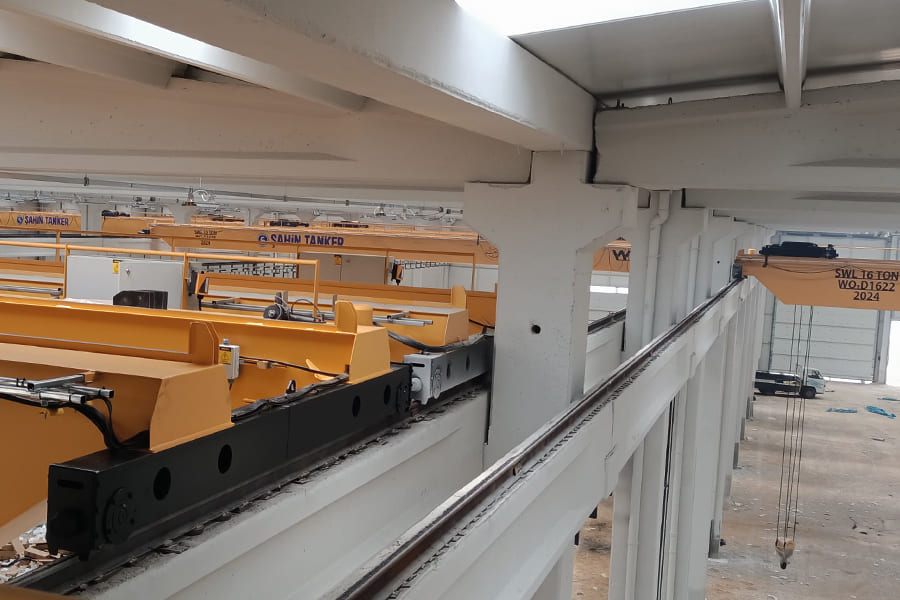

Wimac's Turkish-manufactured double girder overhead cranes are engineered for high-capacity lifting, long-span coverage, and demanding duty classes. The twin-girder bridge structure ensures minimal deflection, superior load distribution, and long service life even under intensive working conditions.
Designed in compliance with FEM and ISO standards, Wimac double girder overhead cranes offer maximum operational safety, high efficiency, and excellent return on investment.
Smooth acceleration and precise positioning with variable frequency drives on all motions.
Designed and manufactured according to international crane safety standards.
Cross-Travel & LiftingWire rope hoist mechanism for vertical lifting with motor, drum, and brake systems.
Load AttachmentWimac Crane Hook Block with Single, Double, Laminated or Rotating options.
Travel SystemWheel assembly for crane travel along runway rails with drive motors.
Energy SupplyCable management for uninterrupted power and signal transmission.
IntelligencePendant, radio, or cabin control with PLC and safety systems.
PerfectionAdditional features available for integration into your crane.

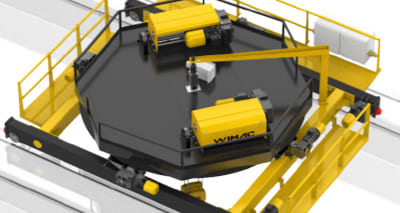

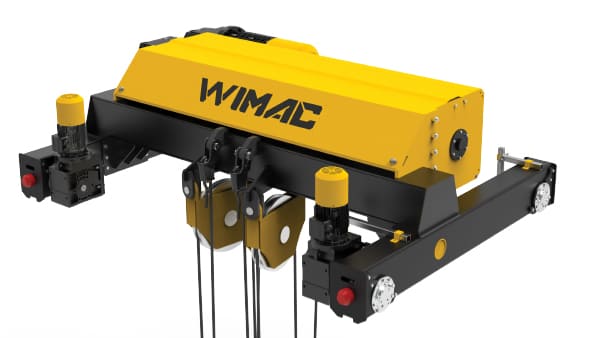

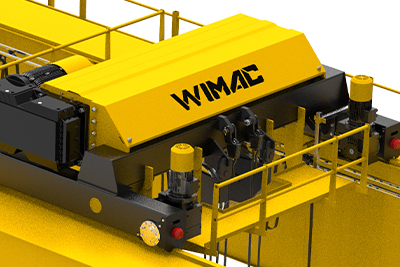

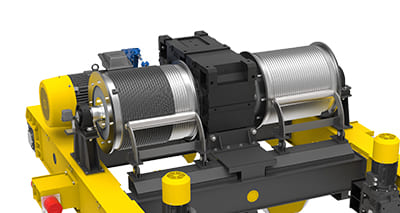

Cross-Travel & Lifting Mechanism
Trolley is designed according to project requirements. Lifting motor is a squirrel-cage asynchronous type with insulation class F. Motor protection class is IP54, IP55 or IP67.
Load Attachment Point
Engineered for maximum strength and reliability per FEM, DIN and ISO standards. Bolted modular assembly for easy service.

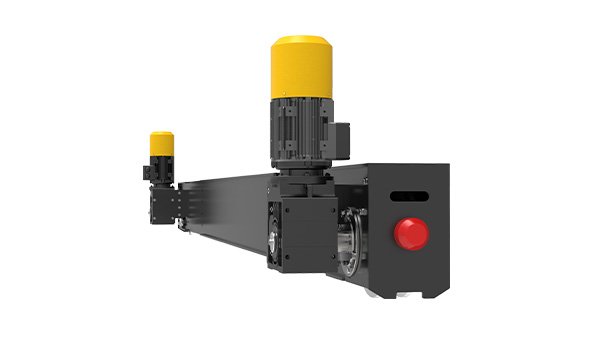

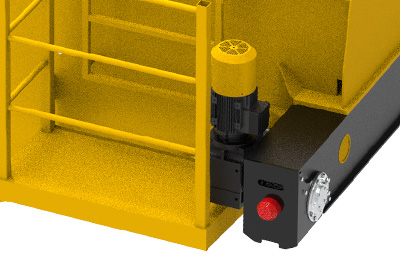

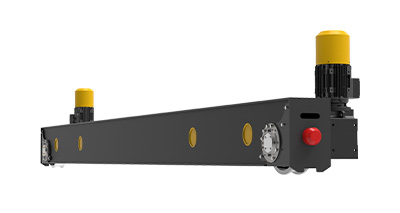

Travel System Assembly
Welded steel structure with machined wheel blocks, forged wheels with hardened treads, and sealed maintenance-free bearings.
Energy Supply
Robust cable management for uninterrupted power transmission. C-Track and I-Beam types available.
Intelligent Operation
IP55/IP67 panel, 400V 50Hz standard. Contains contactors, thermal relays, limit switches for -40°C to +70°C operation.
Reach for Perfection
Additional features available for integration into your crane system.
