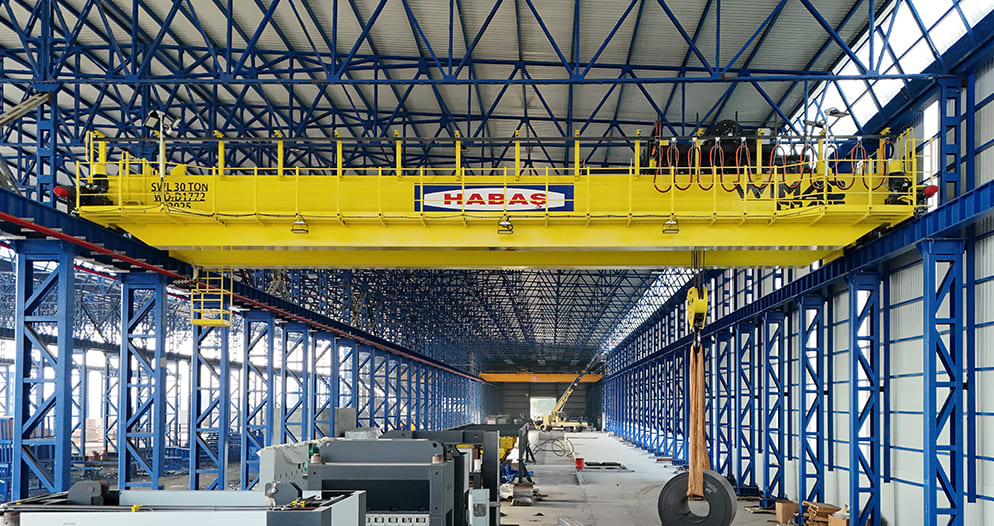

Process Cranes are designed for the most demanding industrial applications including steel mills, foundries, metallurgical plants, and heavy manufacturing facilities.
Process Cranes are designed for the most demanding industrial applications including steel mills, foundries, metallurgical plants, and heavy manufacturing facilities. These cranes are engineered to handle extreme duty cycles, high ambient temperatures, and hazardous materials such as molten metal, making them essential for ladle handling, charging operations, casting processes, and slab/coil handling.
With their robust construction, redundant safety systems, and precision control, process cranes deliver reliable performance in environments where standard cranes cannot operate, ensuring maximum uptime and operational safety.
Wimac process cranes are designed and manufactured in compliance with FEM and ISO standards. They feature heat-resistant components, redundant braking systems, and advanced safety features for continuous heavy-duty operation.
Specialized components and thermal protection for high-temperature environments.
Multiple backup systems ensure safe operation with molten materials.

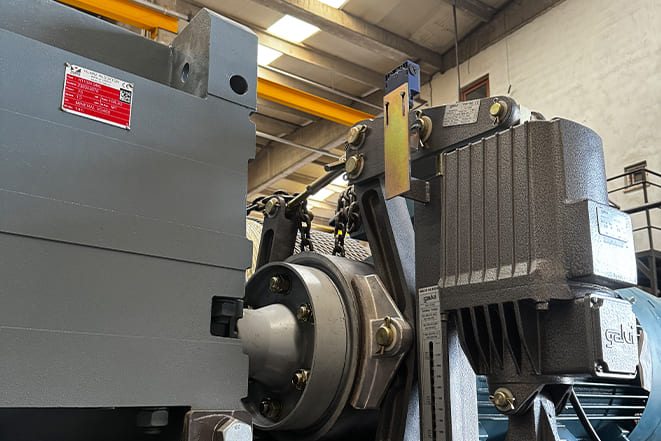

Lifting UnitHeavy duty wire rope hoist mechanism for vertical lifting with motor, drum, and redundant brake systems.

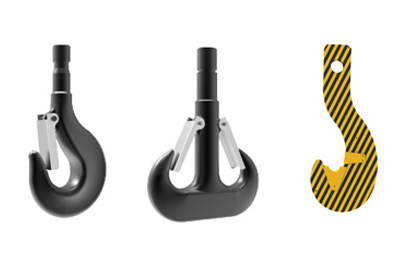

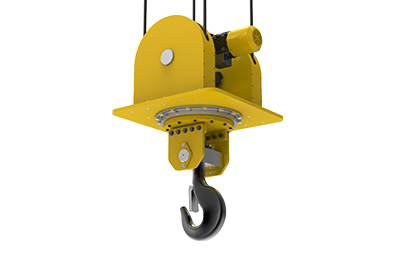

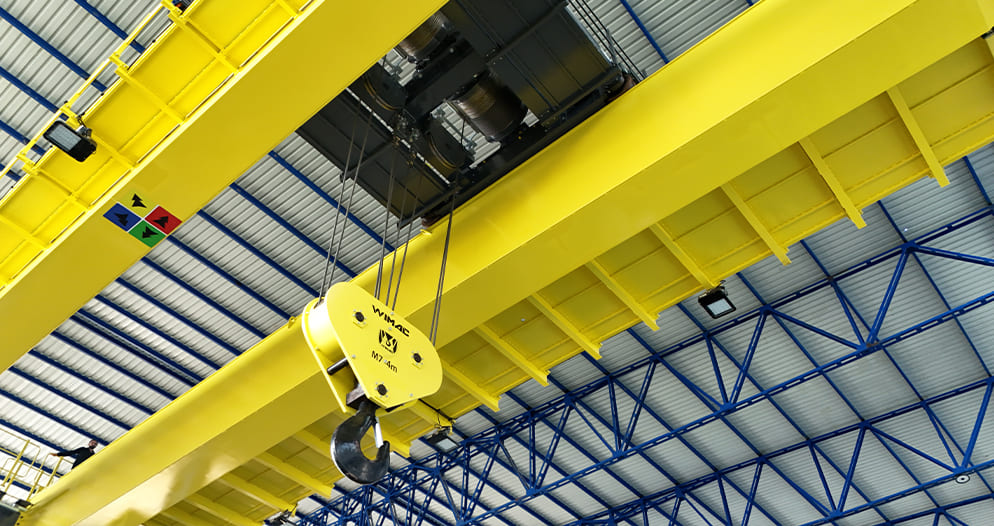

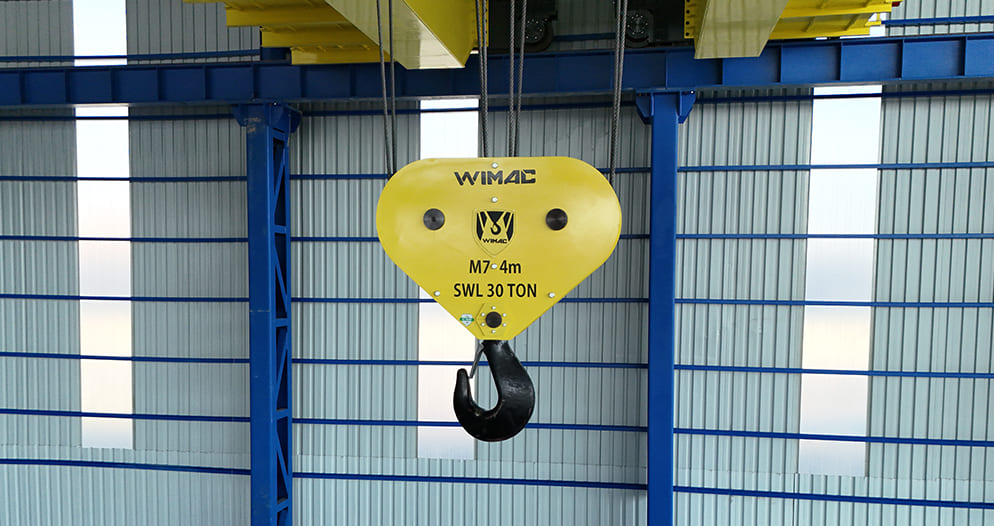

Load AttachmentWimac Crane Hook Block with Single, Double, Laminated or Rotating options for heavy loads.
Travel SystemHeavy duty wheel assembly for crane travel along runway rails with multiple drive motors.
Energy SupplyHeavy duty cable management for uninterrupted power and signal transmission.

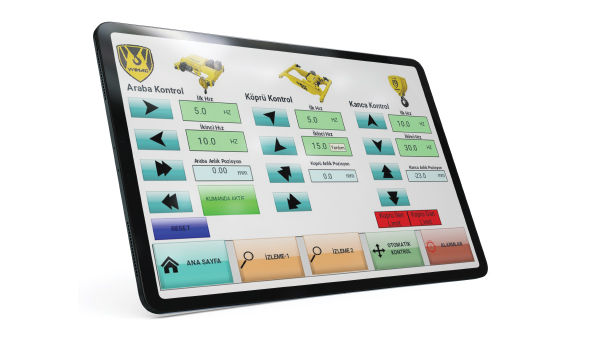

IntelligenceCabin control with PLC, redundant safety systems, and process monitoring.

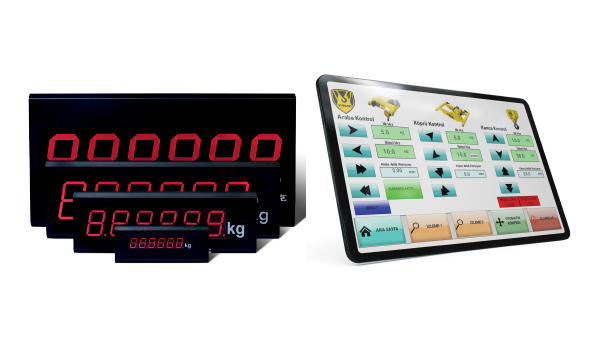

PerfectionAdditional features available for integration into your process crane.

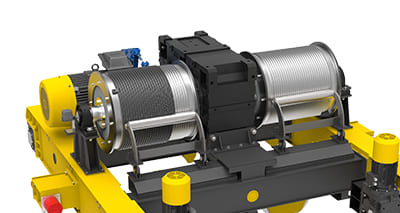

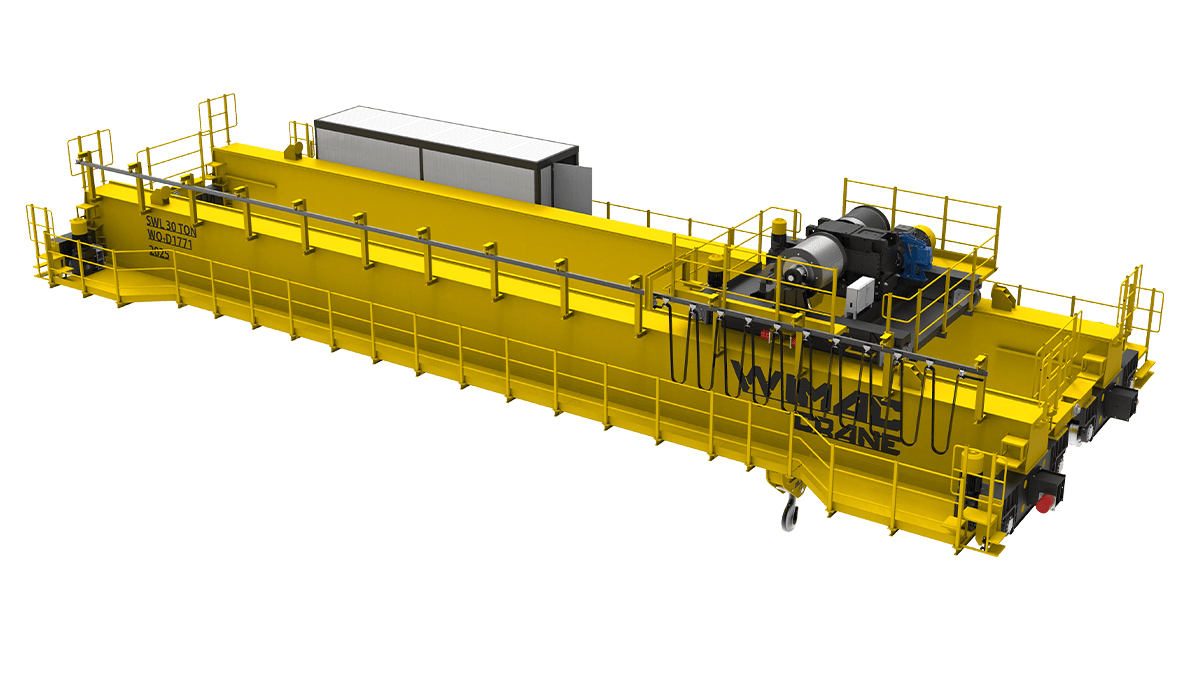

Cross-Travel & Lifting Mechanism
Trolley is designed for heavy duty process applications. Lifting motor is a squirrel-cage asynchronous type with insulation class H. Motor protection class is IP54, IP55 or IP67.

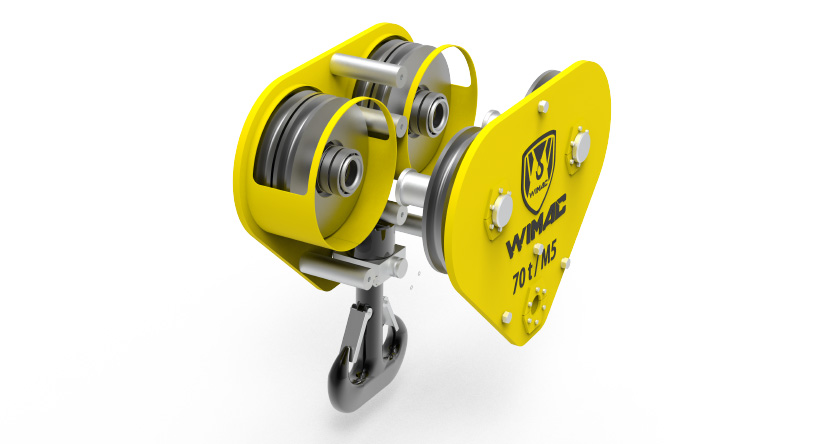

Load Attachment Point
Engineered for maximum strength and reliability per FEM, DIN and ISO standards. Bolted modular assembly for easy service.

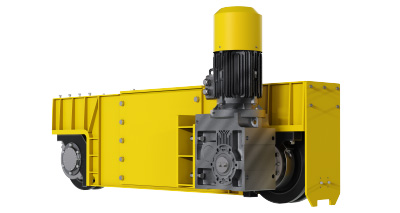

Travel System Assembly
Heavy duty welded steel structure with machined wheel blocks, forged wheels with hardened treads, and sealed maintenance-free bearings.

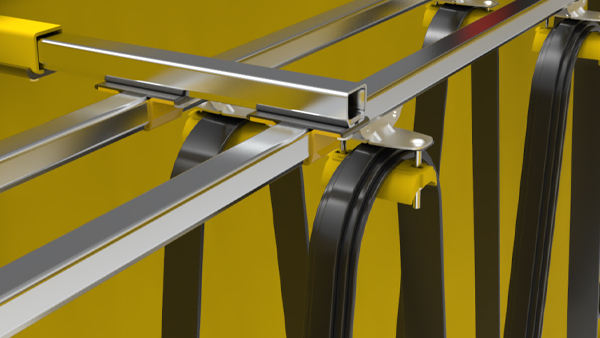

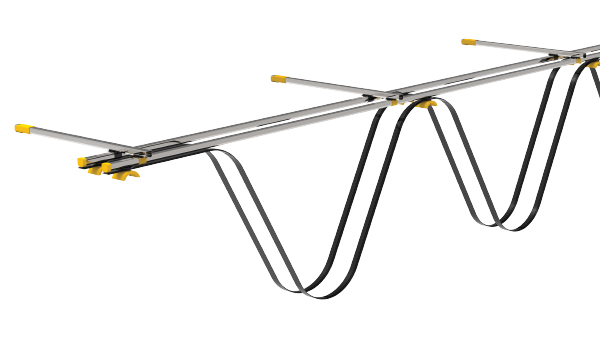

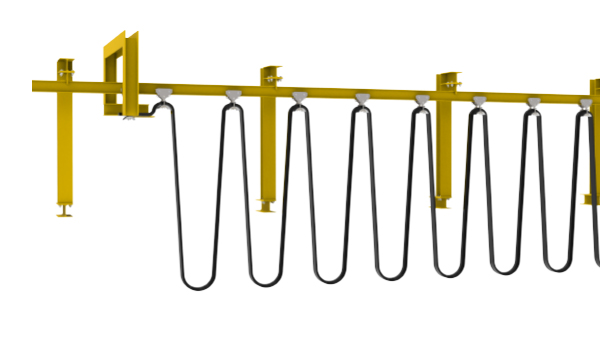

Energy Supply
Heavy duty cable management for uninterrupted power transmission. Heat resistant cables for high-temperature environments.

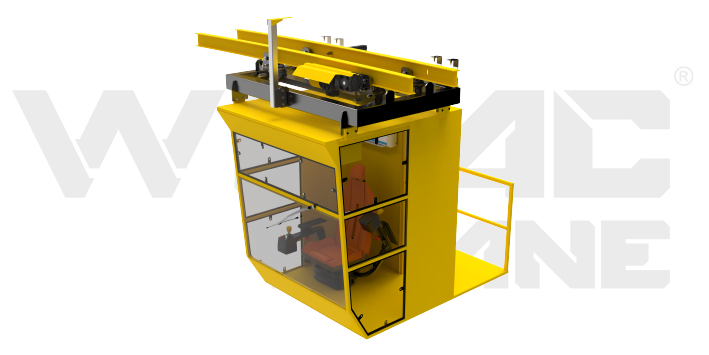

Intelligent Operation

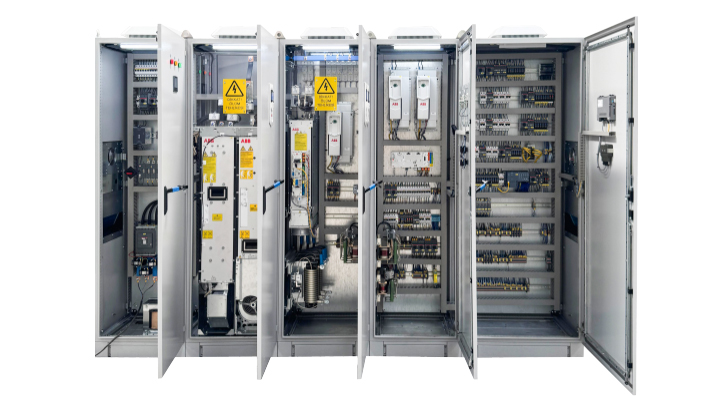

IP55/IP67 panel, 400V 50Hz standard. Contains contactors, thermal relays, limit switches for -40°C to +70°C operation with redundant safety systems.
Reach for Perfection
Additional features available for integration into your process crane system.
