Hybrid lifting solution with one side running on ground rail and the other supported by an elevated runway beam. Cost-effective for production halls and warehouses.

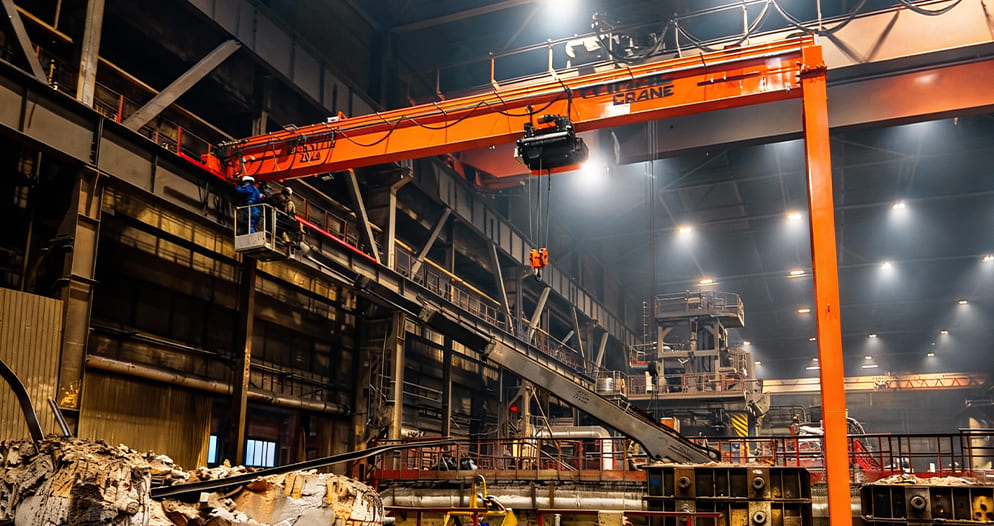

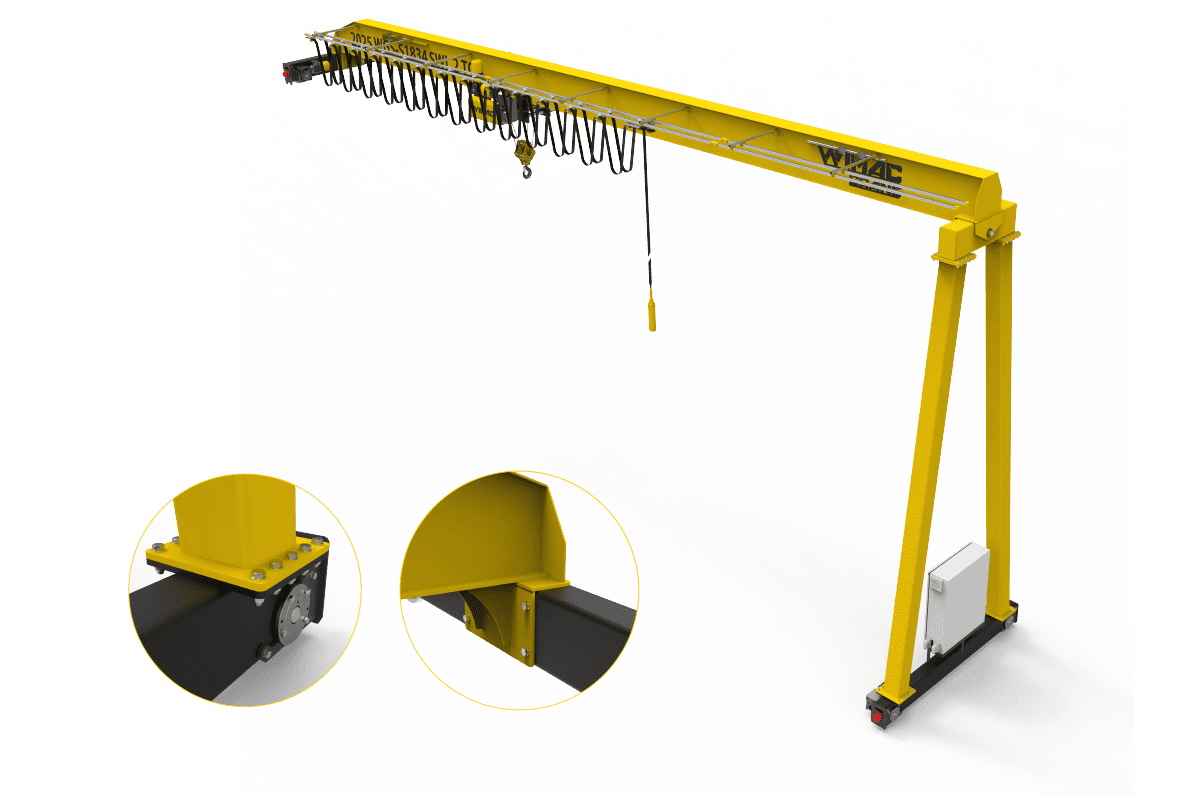

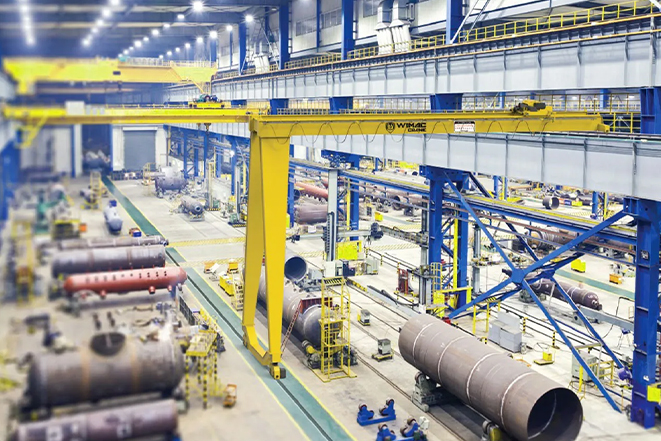

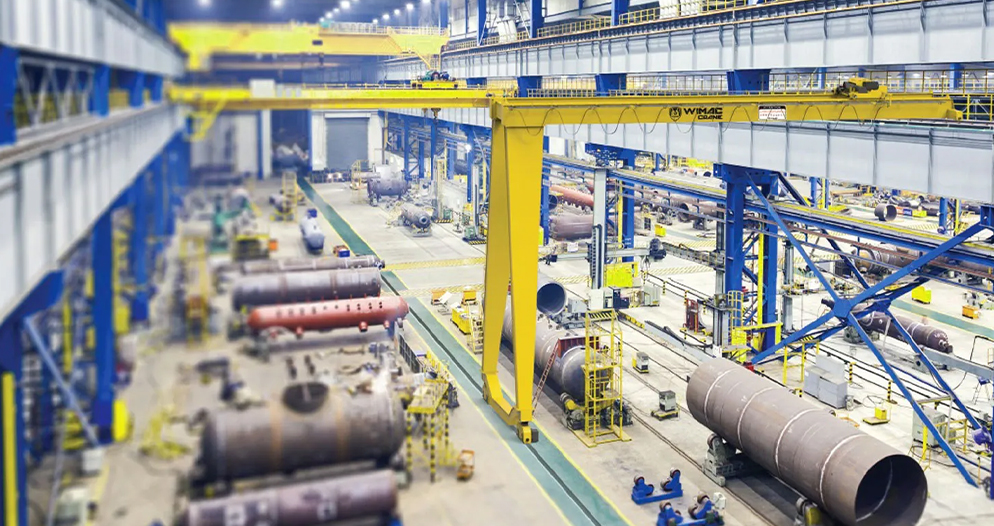

Semi-Gantry Cranes are designed for facilities that require efficient material handling while maximizing floor space and adapting to existing building structures. With one side running on a ground rail and the other supported by an elevated runway beam, they offer a cost-effective solution for production halls, warehouse zones, and areas where a full gantry crane cannot be installed.
This hybrid structure provides smooth side access, flexible layout integration, and reduced installation time. Semi-gantry cranes deliver precise, stable, and low-maintenance performance, making them an excellent choice for operations that demand reliable lifting capability without the need for a full gantry system.
Wimac semi-gantry cranes are designed and manufactured in compliance with FEM and ISO standards. They offer low maintenance costs, high operational efficiency, and long service life.
Smooth acceleration and precise positioning with variable frequency drives on all motions.
Designed and manufactured according to international crane safety standards.
Cross-Travel & LiftingWire rope hoist mechanism for vertical lifting with motor, drum, and brake systems.
Load AttachmentWimac Crane Hook Block with Single, Double, Laminated or Rotating options.
Travel SystemWheel assembly for crane travel along runway rails with drive motors.
Energy SupplyCable management for uninterrupted power and signal transmission.
IntelligencePendant, radio, or cabin control with PLC and safety systems.
PerfectionAdditional features available for integration into your crane.

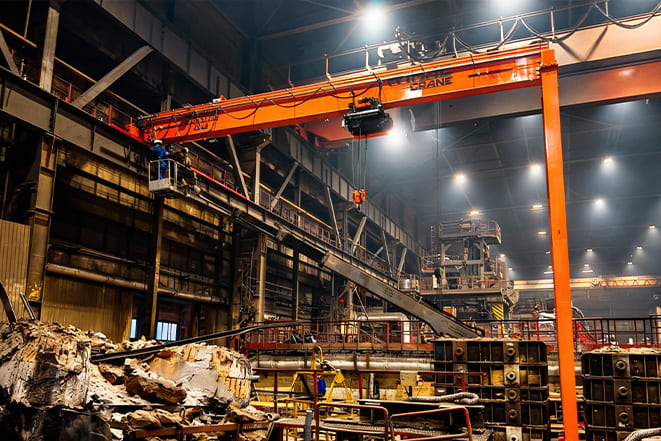

Cross-Travel & Lifting Mechanism
Trolley is designed according to project requirements. Lifting motor is a squirrel-cage asynchronous type with insulation class F. Motor protection class is IP54, IP55 or IP67.
Load Attachment Point
Engineered for maximum strength and reliability per FEM, DIN and ISO standards. Bolted modular assembly for easy service.
Travel System Assembly
Welded steel structure with machined wheel blocks, forged wheels with hardened treads, and sealed maintenance-free bearings.
Energy Supply
Robust cable management for uninterrupted power transmission. C-Track and I-Beam types available.
Intelligent Operation
IP55/IP67 panel, 400V 50Hz standard. Contains contactors, thermal relays, limit switches for -40°C to +70°C operation.
Reach for Perfection
Additional features available for integration into your crane system.
